Optical node cables

Specifications

These cables are designed to make the optical node connections used in cable distribution. They are available in several configurations.

  • Highly resistant to weather conditions.
  • Available for most connector types, including MTP.
  • Custom cable and transition lengths.
  • Our watertight, heavy-duty 5/8″ feed thru UNEF connector prevents cable rotation during installation.
  • Our polyurethane, PVC and Hytrel tubings and rubber boots remain flexible at low temperatures.

90° version available:
The 90° optical node cable is designed for tight spaces.

  • Up to 24 fibres, available in (900 μm) and 2 mm jackets.
  • 2700N/800N, cable installation and operating tension.
  • Armoured or dielectric cable available.
  • Custom colour and transition lengths.

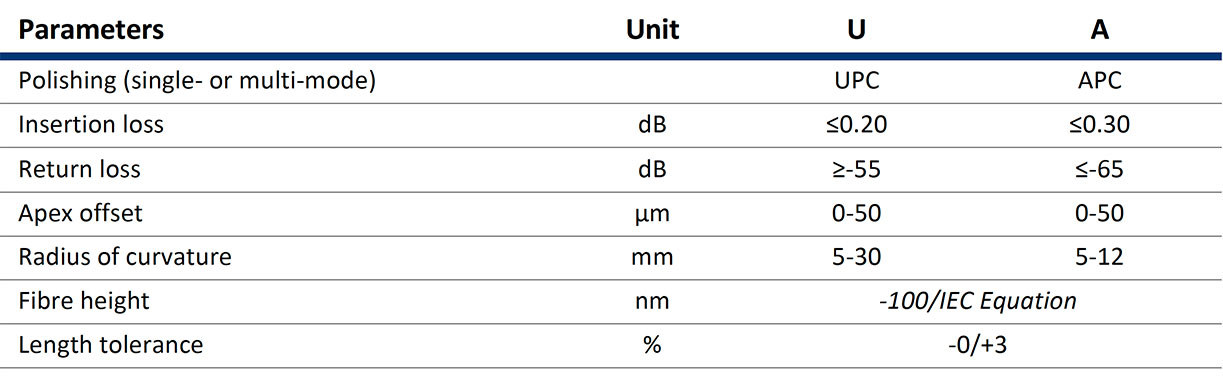

Technical characteristics

The Series + includes geometric qualification.

  • All connectors are inspected.
  • All connectors are tested at 850 nm (MM) and 1550 nm (SM), test data supplied.
  • Products are designed to meet or exceed the TELCORDIA, GR-326-CORE standards.
  • Cables meet or exceed TELCORDIA GR-20 requirements.
