MPO-MTP® cables

Specifications

O-m6 manufactures MPO-MTP® cables with high-precision MT ferrules (Elite). They are available with 8 to 72 fibres (multi-mode or single-mode). All of our cables are built to order according to the requirements of your application.

  • 8, 12, 24, 48 and 72 fibre versions.
  • 16 and 32 fibre versions.
  • Stainless steel jacket available on request.

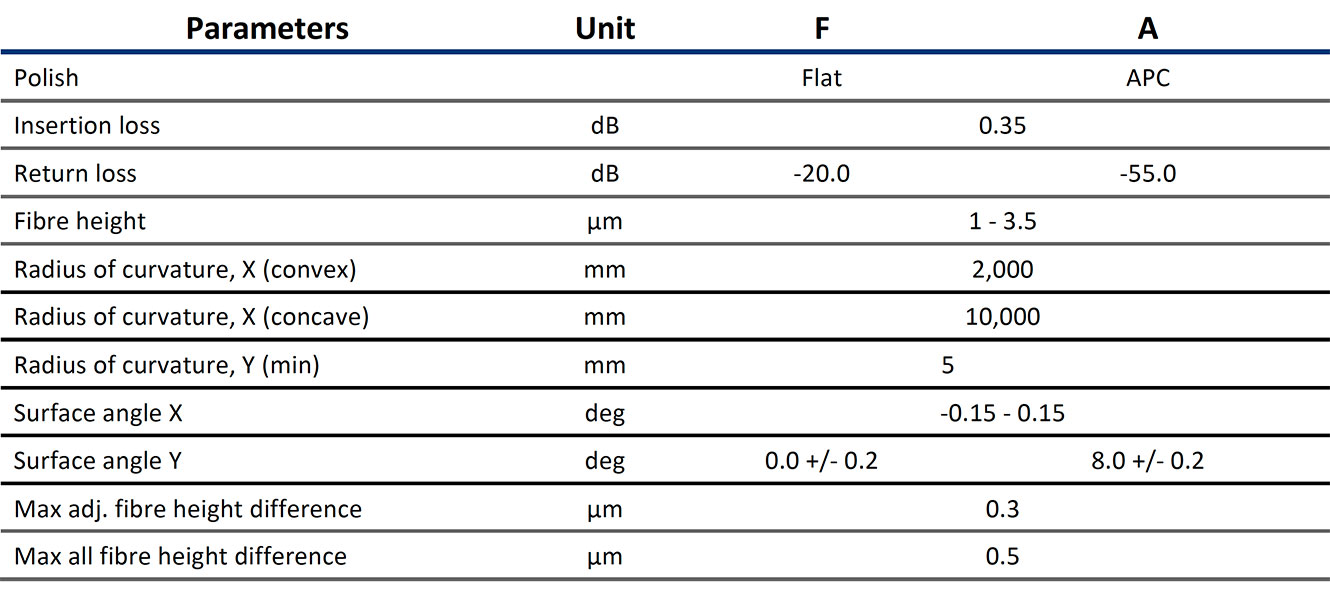

Technical characteristics of 12-fibre MTP® cables

All ferrules are inspected.
* If available for the ferrule requested.

The Series + includes geometric qualification.

Other relevant information

Procedure for cleaning

Specifications

  • Keep connectors clean.
  • Put the protective cap back on when not in use.
  • The fibre’s bend radius must always be greater than 30 mm.
  • Do not touch the ferrule prior to installation.
  • Make sure each connector is installed properly.

Steps:

  1. Wet lens paper with filtered water and rub it gently over the surface of the ferrule. Repeat with a wipe intended for delicate tasks to blot up excess water.
  2. Do not use isopropyl alcohol or acetone.
  3. Hook up the connector or put the cap back on.
  4. For male connectors, clean the ferrule by inserting the tissue between the guide pin

Cassettes and MPO connector cleaners also yield acceptable results.

Before you inspect a connector, always make sure the light source is turned off.
