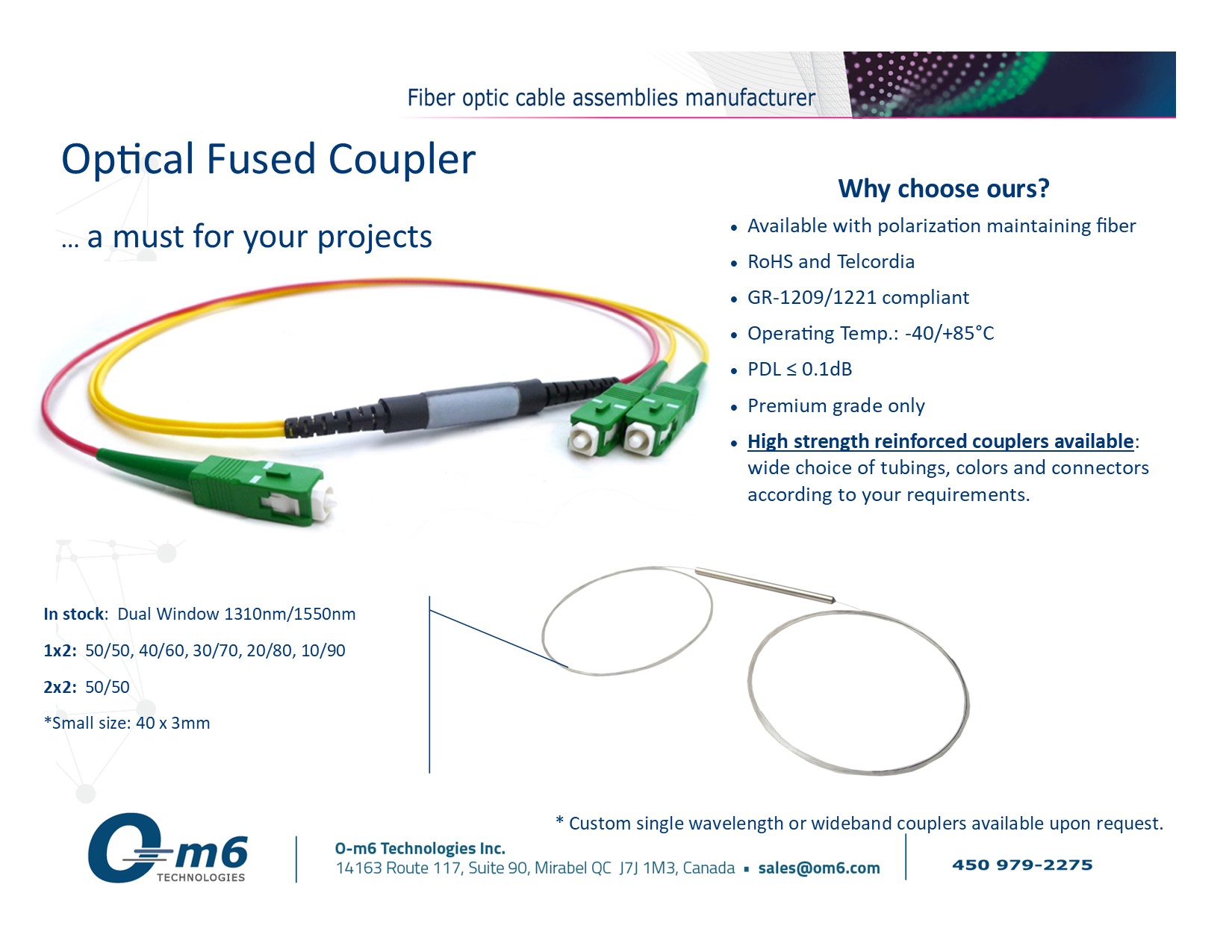

A coupler is a component used to distribute optical power among two or more ports by combining or splitting the signal for a number of inputs or outputs. Our couplers are available in a wide range of configurations (1X2, 1X3, 2X2) and several sizes (900 µm or 2 mm).

  • Wide range of coupling ratios.
  • Huge selection of jacket materials and connectors.
  • Compact format.
  • All connectors are inspected and tested according to IEC standards.

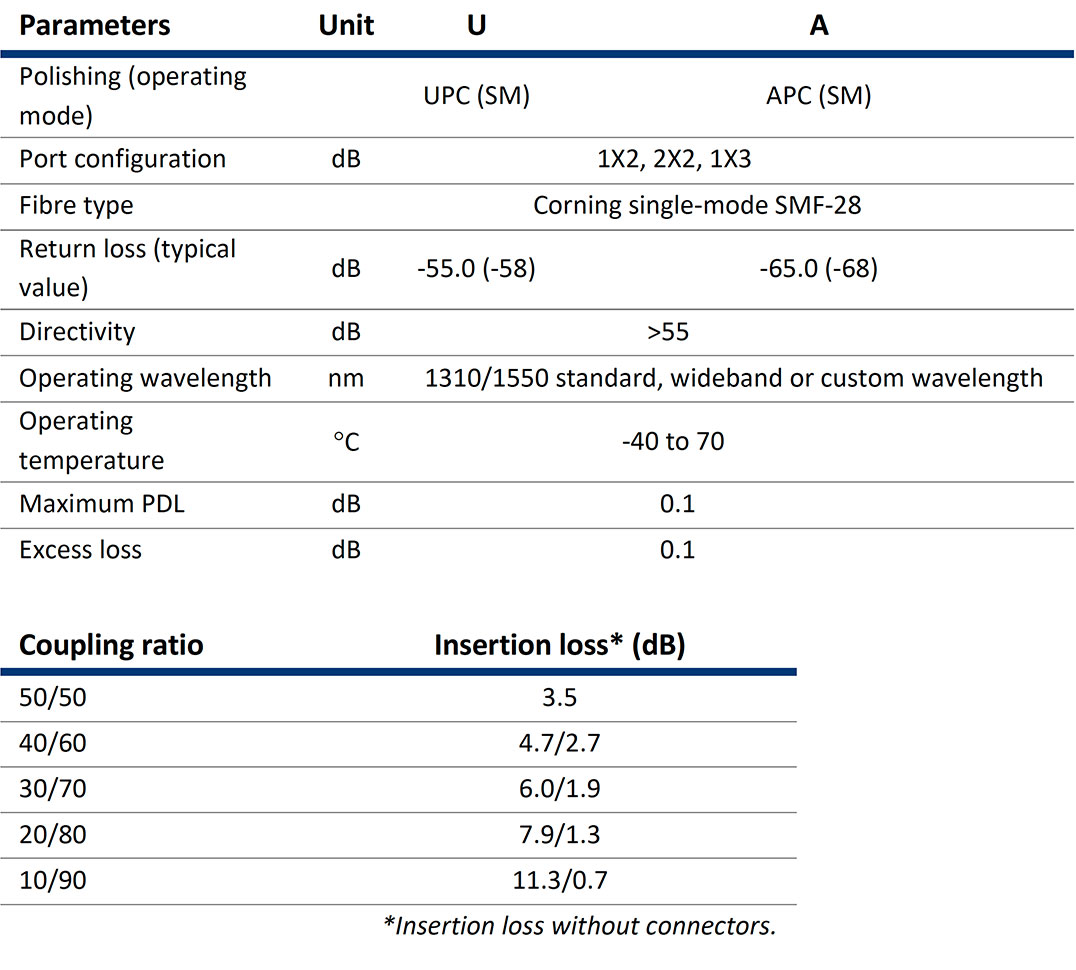

Technical characteristics

The Series + includes geometric qualification.

You have questions or want to place an order?

All products ordered from O-m6 can be customized to meet your requirements.
